40kVA
Cummins/4BT3.9-G2
Cummins 40 kVA
Motor-start muscle in a small frame — lifts, pumps and cold rooms.
- Phase
- 3-Ph
- Fuel
- Diesel
- Noise
- 67 dB
Price
On request

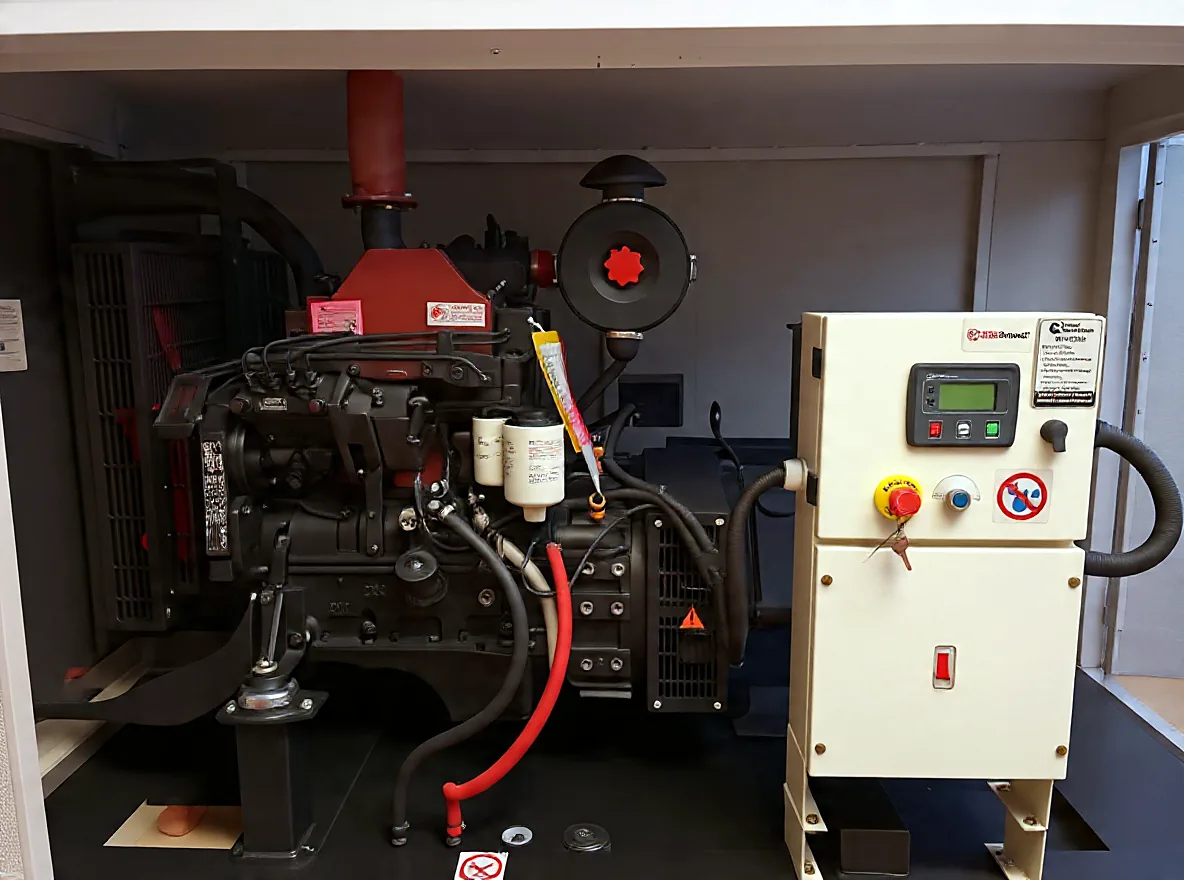

01/Engine side
- Output
- 60 kVA
- Phase
- 3-Phase
- Noise
- 73 dB
Commercial
Cummins 4BTA3.9-G2Cummins 60 kVA diesel generator
Aftercooled four-cylinder that starts motors a 60 kVA set usually struggles with.
Price
On request
The figure depends on the canopy and ATS specification, the installation scope and the exchange rate on the day — so we quote it line by line instead of publishing a number that is wrong by the time you read it. Most quotes go out the same day. What decides the price
0301-4521500Best suited to
- Plazas
- Workshops
- Petrol stations
- Cold storage
Capabilities
What this set does.
- 90 amps per phase at full load — sized for a plaza floor or a mid-size workshop
- Aftercooled intake holds rated output through summer ambient temperatures
- Takes lift, pump and compressor starting current without tripping the rest of the load
- Bulk fuel tank connection available for long running hours
- Digital controller with auto start, fault history and emergency stop on the panel
Specifications
The full sheet.
- Rated output
- 60 kVA / 50 kW
- Phase
- Three phase
- Voltage
- 400V / 230V
- Frequency
- 50 Hz
- Speed
- 1500 rpm
- Fuel
- Diesel
- Engine brand
- Cummins (United States)
- Engine
- Cummins 4BTA3.9-G2 · 4-cylinder turbo aftercooled
- Engine rated power
- 50 kW
- Alternator
- Stamford-type brushless, AVR regulated, IP23
- Full-load current
- 90 A per phase
- Fuel tank
- 150 L
- Fuel consumption
- 10 L/h at 75% load
- Noise level
- 73 dB(A) at 7 m
- Enclosure
- Silent canopy
- Starting
- Auto start
- Dimensions (L×W×H)
- 2520 × 1050 × 1250 mm
- Dry weight
- 1200 kg
- Warranty
- 24 months
Next step
A free site survey, an honest recommendation on rating, and an itemised quote with nothing buried in it. No obligation either way.
