IMS line60kVA
Tazato/T4Z105ZLD
Tazato 60 kVA

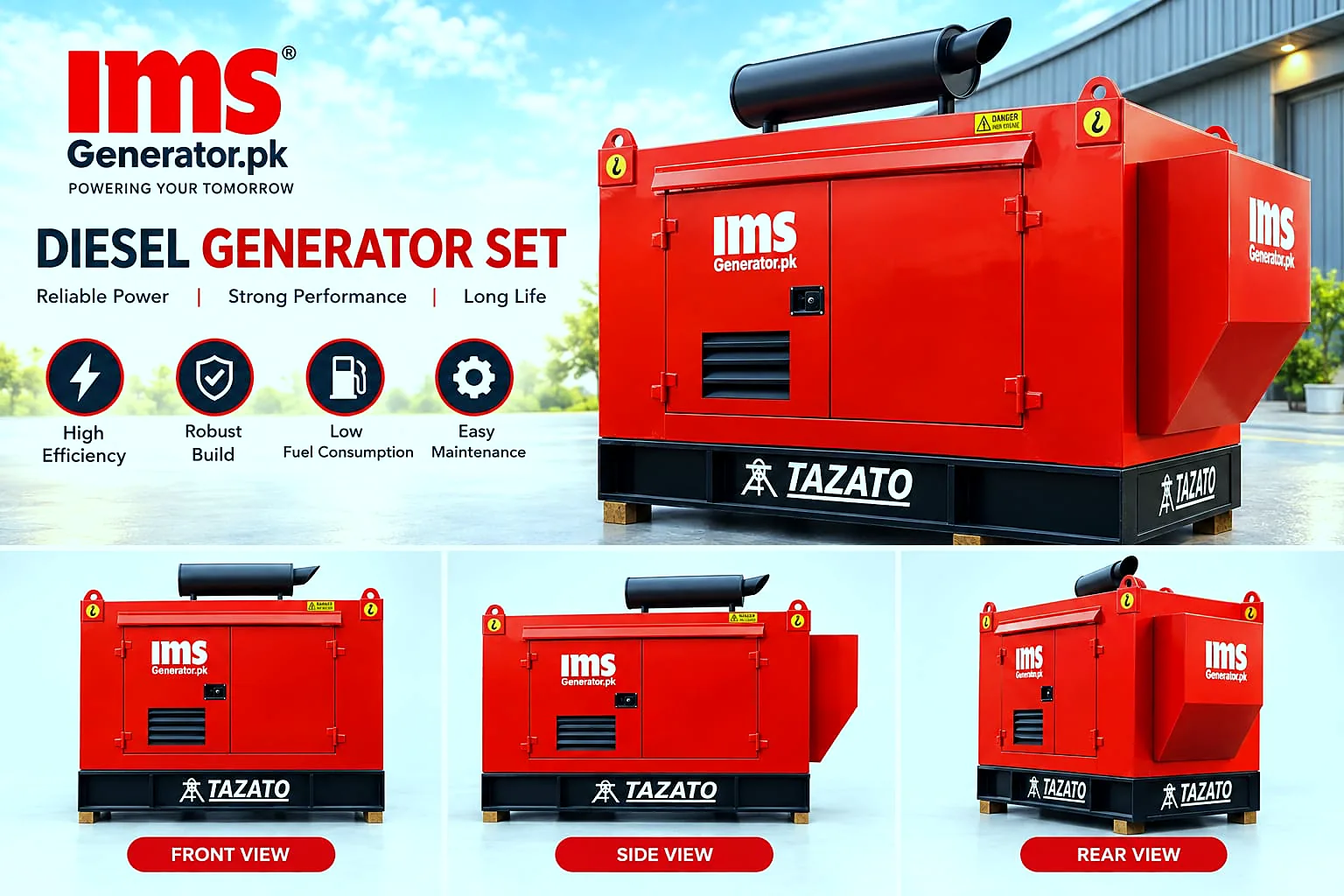

Our own 60 kVA set, open or in a super-silent weatherproof canopy.
- Phase
- 3-Ph
- Fuel
- Diesel
- Power
- 50 kW
Price
On request

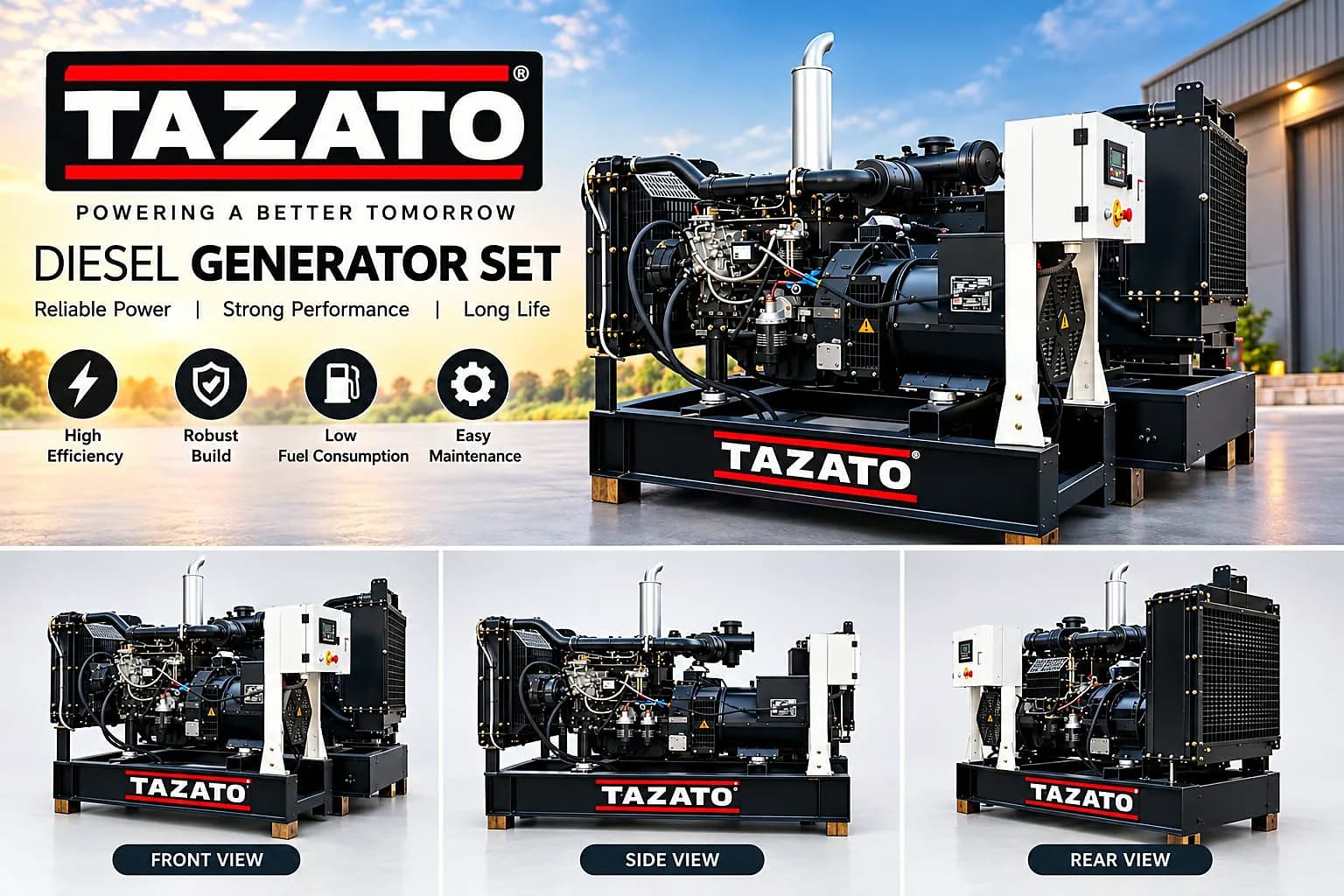

01/Open set
- Output
- 30 kVA
- Phase
- 3-Phase
- Power
- 25 kW
StandbyIMS line
Tazato T4Z95Tazato 30 kVA diesel generator
Our own 30 kVA set for a shop, clinic or large home, with a Stamford alternator.
Price
On request
The figure depends on the canopy and ATS specification, the installation scope and the exchange rate on the day — so we quote it line by line instead of publishing a number that is wrong by the time you read it. Most quotes go out the same day. What decides the price
0301-4521500Best suited to
- Retail shops
- Clinics
- Large homes
- Small offices
Capabilities
What this set does.
- 27 kW (33 kVA) engine driving a 25 kW alternator — rated output without running the engine flat out
- Stamford alternator delivering 43 amps per phase at full load
- Digital controller and emergency stop on a panel mounted to the set
- Heavy steel base frame with anti-vibration mounts
- Supplied as an open set, or in a silent canopy on request
Specifications
The full sheet.
- Rated output
- 30 kVA / 25 kW
- Phase
- Three phase
- Voltage
- 400V / 230V
- Frequency
- 50 Hz
- Speed
- 1500 rpm
- Fuel
- Diesel
- Brand
- Tazato (UK technology)
- Engine
- Tazato T4Z95 · 4-cylinder
- Engine rated power
- 27 kW
- Alternator
- Stamford, 25 kW / 30 kVA
- Full-load current
- 43 A per phase
- Enclosure
- Open frame
- Starting
- Electric start
Next step
A free site survey, an honest recommendation on rating, and an itemised quote with nothing buried in it. No obligation either way.
