250kVA
Cummins/6CTAA8.3-G2
Cummins 250 kVA
Carries a full production floor, including everything starting at once.
- Phase
- 3-Ph
- Fuel
- Diesel
- Noise
- 75 dB
Price
On request
01/Open set
- Output
- 350 kVA
- Phase
- 3-Phase
- Noise
- 79 dB
Industrial
Cummins NTA855-G1BCummins 350 kVA diesel generator
The 14-litre Cummins that mills and factories run shift after shift.
Price
On request
The figure depends on the canopy and ATS specification, the installation scope and the exchange rate on the day — so we quote it line by line instead of publishing a number that is wrong by the time you read it. Most quotes go out the same day. What decides the price
0301-4521500Best suited to
- Textile mills
- Factories
- Hospitals
- Housing societies
Capabilities
What this set does.
- 504 amps per phase at full load from a 284 kW engine
- Large-displacement, slow-stressed engine built for long daily running hours
- Carries looms, compressors and chillers starting together without sequencing
- Designed for bulk fuel integration on continuous-duty sites

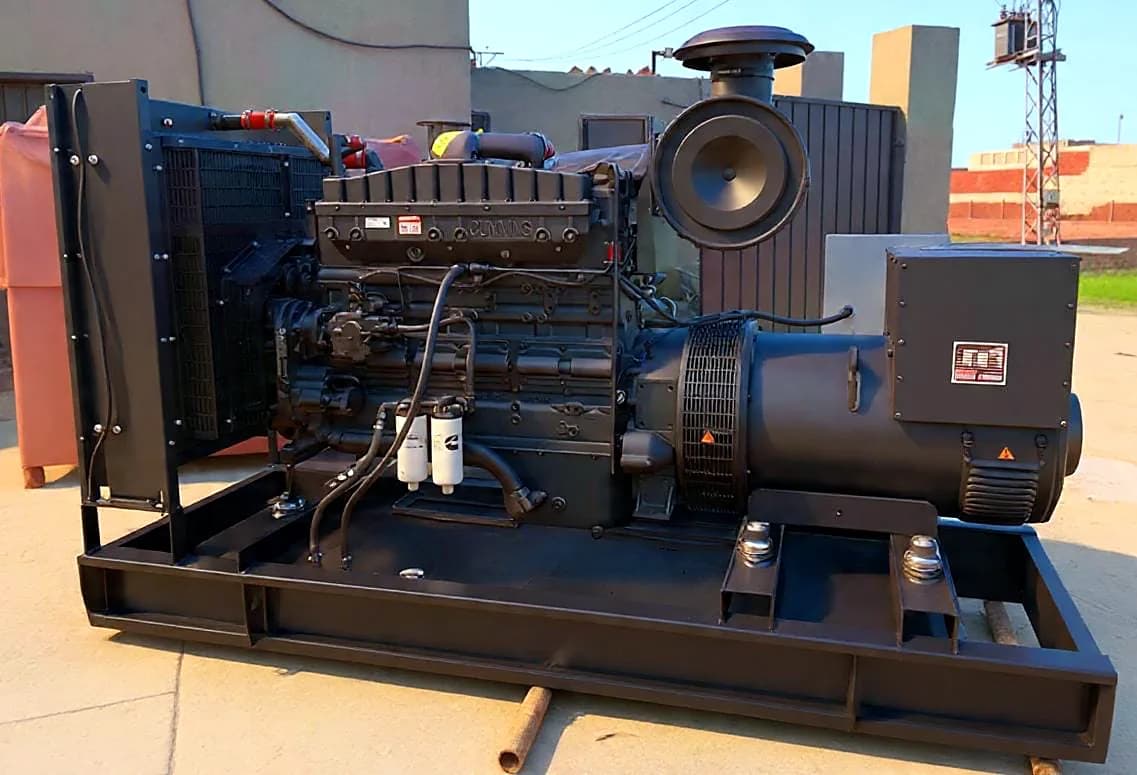

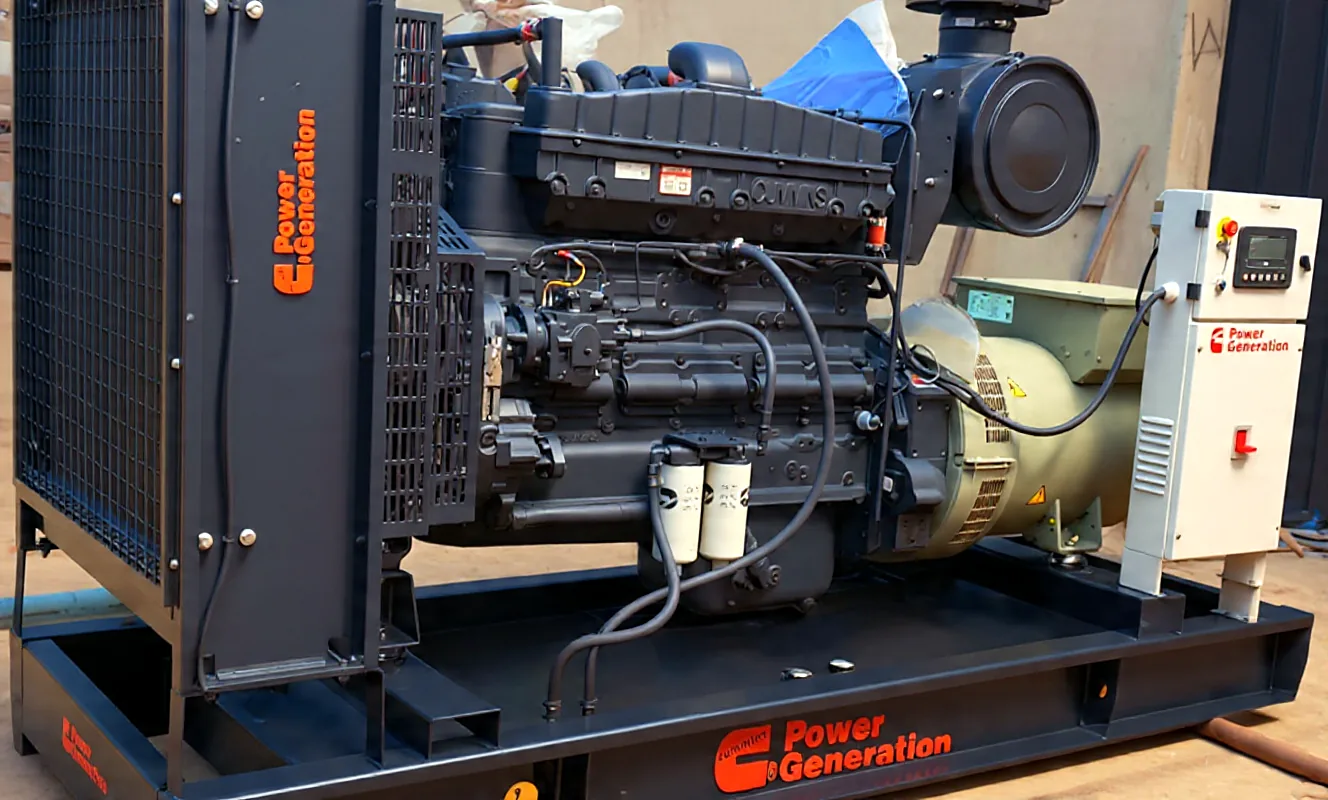

- Supplied as an open set for a generator room or in a sound-attenuated canopy
Specifications
The full sheet.
- Rated output
- 350 kVA / 280 kW
- Phase
- Three phase
- Voltage
- 400V / 230V
- Frequency
- 50 Hz
- Speed
- 1500 rpm
- Fuel
- Diesel
- Engine brand
- Cummins (United States)
- Engine
- Cummins NTA855-G1B · 6-cylinder turbo aftercooled
- Engine rated power
- 284 kW
- Alternator
- Stamford-type brushless, PMG excited, IP23
- Full-load current
- 504 A per phase
- Fuel tank
- 570 L
- Fuel consumption
- 54 L/h at 75% load
- Noise level
- 79 dB(A) at 7 m
- Enclosure
- Silent canopy
- Starting
- Auto start
- Dimensions (L×W×H)
- 3800 × 1350 × 2222 mm
- Dry weight
- 3700 kg
- Warranty
- 24 months
Next step
A free site survey, an honest recommendation on rating, and an itemised quote with nothing buried in it. No obligation either way.
