Best seller30kVA
Perkins/1103A-33G
Perkins 30 kVA
The volume seller for houses, clinics and branch offices.
- Phase
- 3-Ph
- Fuel
- Diesel
- Noise
- 64 dB
Price
On request
01/Open set
- Output
- 20 kVA
- Phase
- 3-Phase
- Noise
- 63 dB
Standby

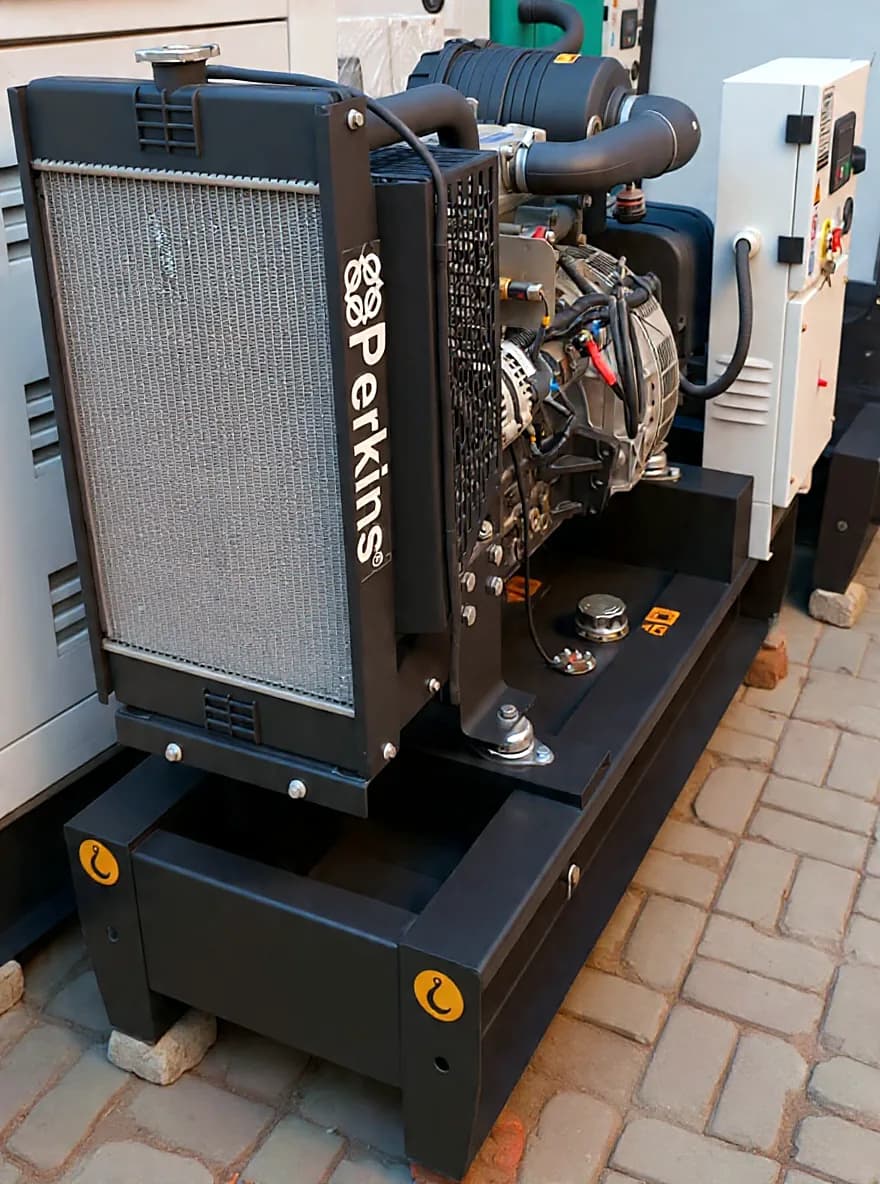

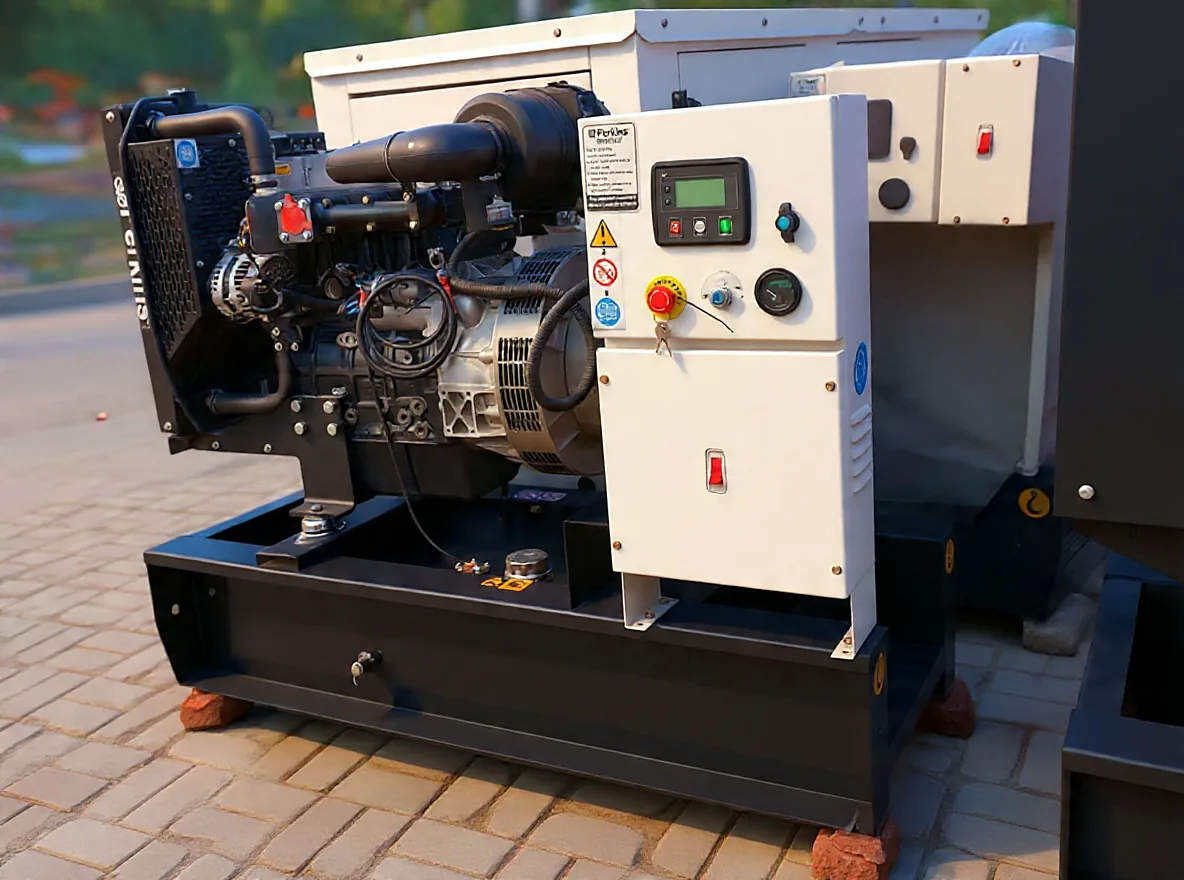

Perkins 404A-22GPerkins 20 kVA diesel generator
Shop, clinic and small-office backup that stays quiet on a street front.
Price
On request
The figure depends on the canopy and ATS specification, the installation scope and the exchange rate on the day — so we quote it line by line instead of publishing a number that is wrong by the time you read it. Most quotes go out the same day. What decides the price
0301-4521500Best suited to
- Retail shops
- Clinics
- Small offices
- Guest houses
Capabilities
What this set does.
- Starts and takes load within 8 seconds of an outage, unattended
- 63 dB(A) at 7 metres — will not draw complaints on a commercial street
- Roughly 15 hours per tank at 75% load
- Three-phase output with balanced single-phase distribution for mixed loads
- Deep-sea controller with fault history readable from the panel
Specifications
The full sheet.
- Rated output
- 20 kVA / 16 kW
- Phase
- Three phase
- Voltage
- 400V / 230V
- Frequency
- 50 Hz
- Speed
- 1500 rpm
- Fuel
- Diesel
- Engine brand
- Perkins (United Kingdom)
- Engine

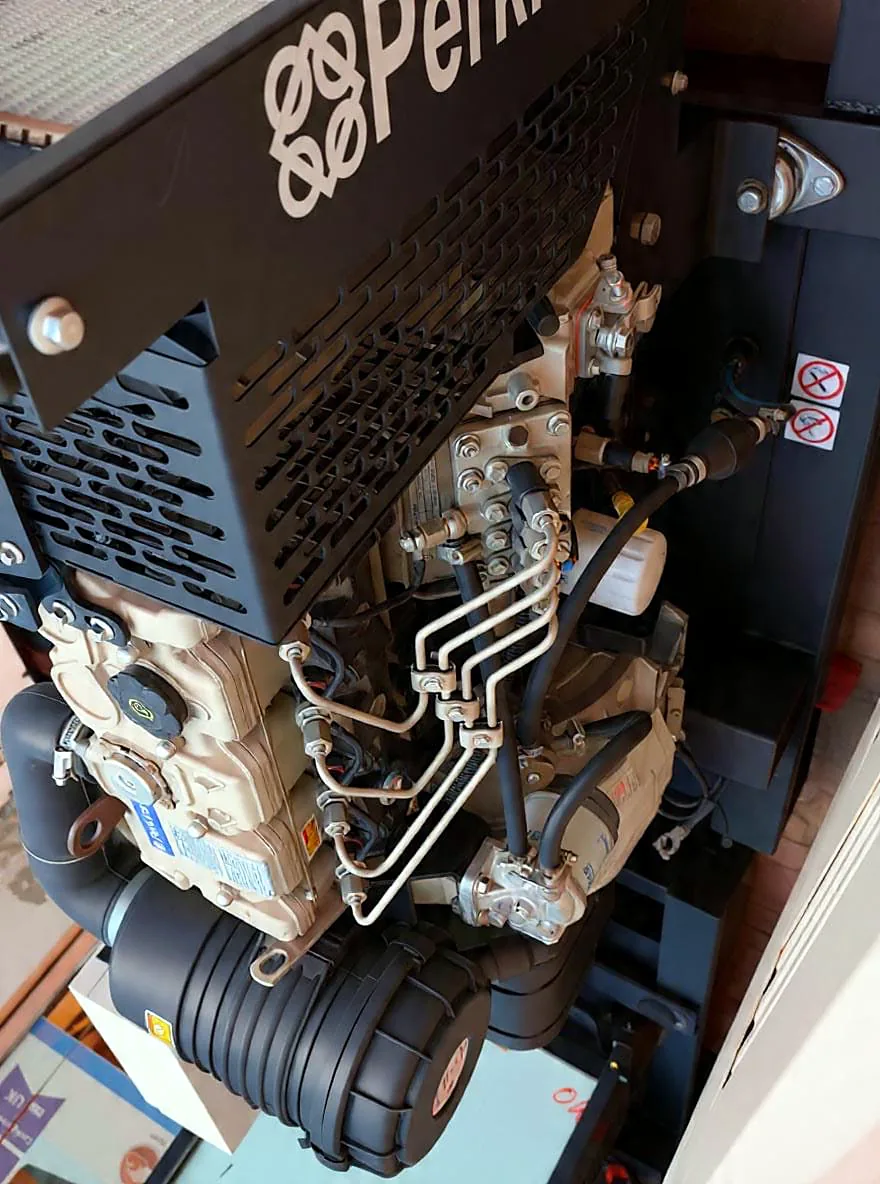

- Perkins 404A-22G · 4-cylinder water-cooled
- Engine rated power
- 18 kW
- Alternator
- Stamford-type brushless, Class H insulation
- Full-load current
- 28 A per phase
- Fuel tank
- 60 L
- Fuel consumption
- 4 L/h at 75% load
- Noise level
- 63 dB(A) at 7 m
- Enclosure
- Silent canopy
- Starting
- Auto start
- Dimensions (L×W×H)
- 1850 × 780 × 1180 mm
- Dry weight
- 760 kg
- Warranty
- 24 months
Next step
A free site survey, an honest recommendation on rating, and an itemised quote with nothing buried in it. No obligation either way.
Mon – Sat, 9:00 AM – 8:00 PM
