Best seller30kVA
Perkins/1103A-33G
Perkins 30 kVA
The volume seller for houses, clinics and branch offices.
- Phase
- 3-Ph
- Fuel
- Diesel
- Noise
- 64 dB
Price
On request
01/Open set
- Output
- 60 kVA
- Phase
- 3-Phase
- Noise
- 68 dB
Commercial
Perkins 1103A-33TG2Perkins 60 kVA diesel generator
Lowest fuel bill per unit for a building that runs all day.
Price
On request
The figure depends on the canopy and ATS specification, the installation scope and the exchange rate on the day — so we quote it line by line instead of publishing a number that is wrong by the time you read it. Most quotes go out the same day. What decides the price
0301-4521500Best suited to
- Commercial towers
- Hotels
- Plazas
- Corporate offices

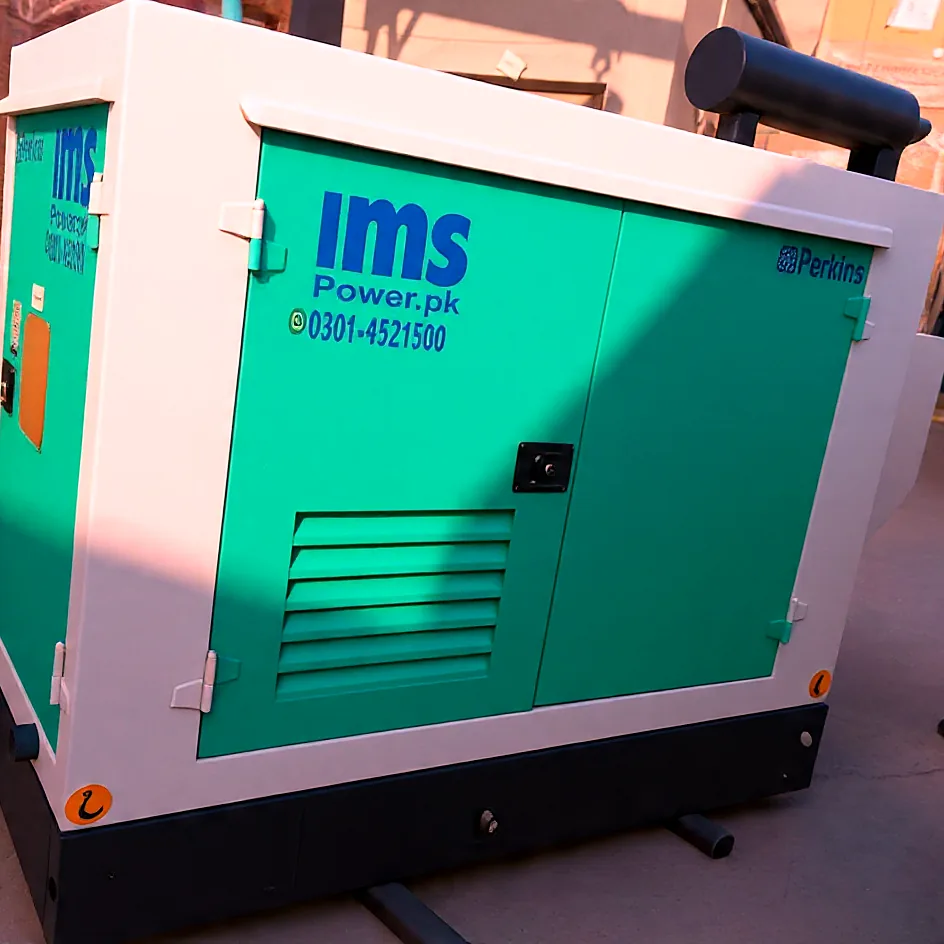

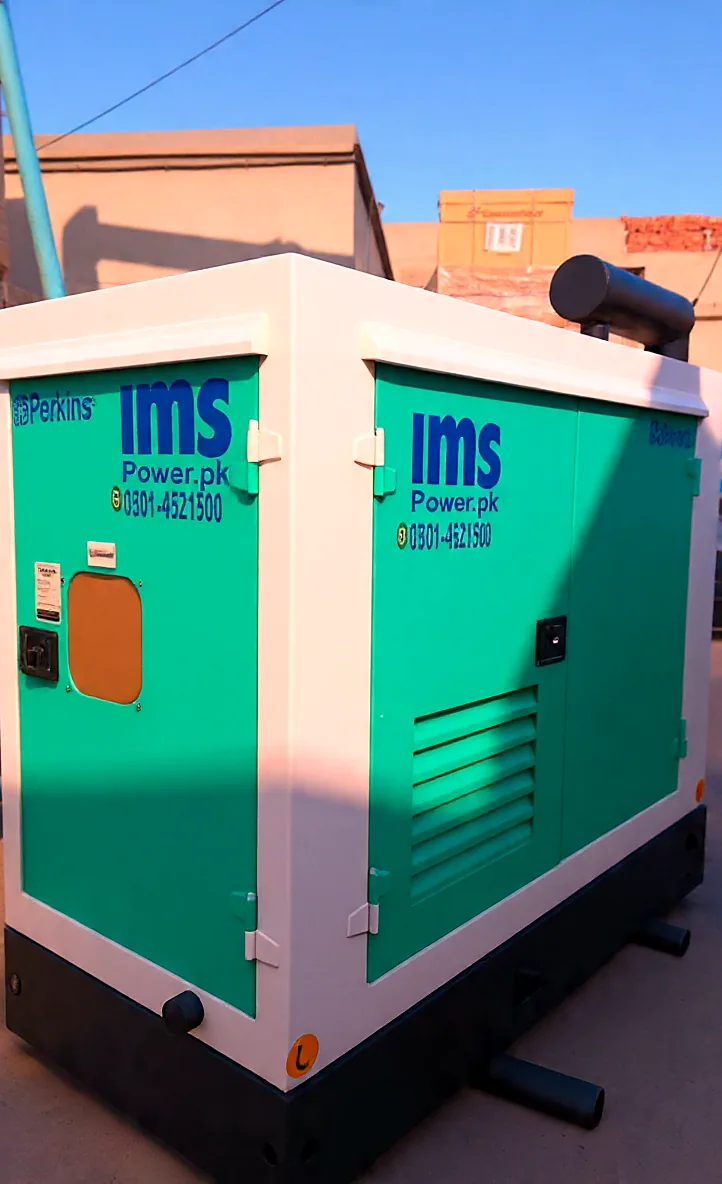

Inside the canopy
Drag to open it up.
Canopy closedEngine insideCapabilities
What this set does.
- Best part-load fuel economy in this band — the saving compounds over daily running
- Around 13 hours per tank at 75% load, with bulk tank connection available
- Low vibration and clean exhaust, suitable for a set near occupied floors
- Motor-start capability for HVAC plant and pressurisation fans
- Full instrumentation: load, power factor, kWh and engine temperatures
Specifications
The full sheet.
- Rated output
- 60 kVA / 50 kW
- Phase
- Three phase
- Voltage
- 400V / 230V
- Frequency
- 50 Hz
- Speed
- 1500 rpm
- Fuel
- Diesel
- Engine brand
- Perkins (United Kingdom)
- Engine
- Perkins 1103A-33TG2 · 3-cylinder turbocharged
- Engine rated power
- 50 kW
- Alternator
- Stamford-type brushless, AVR regulated, IP23
- Full-load current
- 90 A per phase
- Fuel tank
- 150 L
- Fuel consumption
- 11 L/h at 75% load
- Noise level
- 68 dB(A) at 7 m
- Enclosure
- Silent canopy
- Starting
- Auto start
- Dimensions (L×W×H)
- 2450 × 980 × 1480 mm
- Dry weight
- 1380 kg
- Warranty
- 24 months
Next step
A free site survey, an honest recommendation on rating, and an itemised quote with nothing buried in it. No obligation either way.
